Products

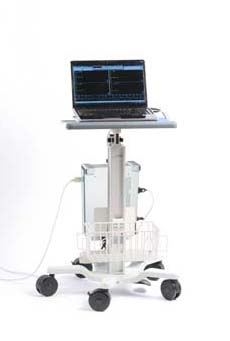

PhysioFlow^® PF05 Lab1^TM

Extensive research and development efforts over recent years have resulted in a new technology called PhysioFlow®. PhysioFlow® covers a range of medical devices designed to perform continuous non-invasive measurements of cardiac output. Cardiac output, associated with stroke volume, contractility index of the left ventricle, is one of the most important of physiological data. It is the volume of blood circulating in the vessels and pumped by the heart. It is used as a diagnosis and monitoring criterion in critical care units, and is of major importance during exercise tests and drug therapy follow-up. Patented Signal Morphology-based Impedance Cardiology (SM-ICG™) Excels in existing ICG applications Extends ICG monitoring to new applications Economical to buy & operate with rapid ROI Quick user learning curve Leverages existing Windows computer investments Simple, industry-standard RS-232 integration to computers & systems Utilizes attached PC printers for documentation Produces continuous hemodynamic waveforms, a new Hemodynamic Cross display & a variety of cardiovascular reports

PhysioFlow^® Lab1^TM Features

• Dimensions: 343 x 260 x 82 mm
• Weight : 4.2 kg
• 6 pre-gelled thoracic surface electrodes
• Connections: Patient cable PF092 (length 4 meters), RS232 serial link, Power cable (220V - 50Hz, 110V - 60Hz), Analogue output
• Options: Optical cable serial link (or USB adaptor), Lengthened patient cable (10 meters), Analogue cable
• Any MS Windows^TM compatible printer

• Minimum computer configuration:
  • Windows XP SP2 or later
  • Windows 7 (avoid Windows Vista) or later 1.7 ghz X86 processor
  • Ram : 1Go
  • Hard Drive 500 mo Free
  • 14 inch screen XVGA
  • Preferably physical serial com port
• Recommended computer configuration:
  • Windows XP SP2 or later
  • Windows 7 (avoid Windows Vista) or later 2.3 ghz X86 processor
  • Ram : 2Go
  • Hard Drive 500 mo Free
  • 15 inch screen XVGA
  • Preferably physical serial com port

Download the brochure

PhysioFlow^® PF07 Enduro^TM

EnduroTM is a portable, battery powered, noninvasive cardiac output device that was designed primarily to be used while a subject or patient is exercising. EnduroTM is unique in that it is the only device that can reliably and repeatedly provide cardiac output during exercise. A fundamental characteristic of patients with chronic heart failure is an impaired ability to increase cardiac output appropriately with exercise. Many patients are able to improve cardiac output after interventions; cardiac resynchronization therapy and exercise training are directly correlated with this. Quantifying cardiac output can therefore provide important information about these and other interventions. Recent studies have also demonstrated that this information is valuable in predicting outcomes in patients with cardiovascular disease.

PhysioFlow^® Enduro^TM Features

• Small Size: 115 x 85 x 18 mm
• Light Weight: Less than 200g (with batteries)
• 6 thoracic surface electrodes
• Advanced adaptative filter for noise cancellation (HD-Z™)
• High performance AA batteries or rechargeable AA batteries, 6 hours autonomy
• 24 hours MMC memory, USB or BlueTooth wireless download
• Real time wireless monitoring using BlueTooth (type I). Range is 40 meters
• Works with PhysioFlow^® PF107 MS Windows^TM-based software for display, data analysis, and storage

• Minimum computer configuration:
  • Windows XP SP2 or later
  • Windows 7 (avoid Windows Vista) or later 1.7 ghz X86 processor
  • Ram : 1Go
  • Hard Drive 500 mo Free
  • 14 inch screen XVGA
  • Preferably no Bluetooth module
• Recommended computer configuration:
  • Windows XP SP2 or later
  • Windows 7 (avoid Windows Vista) or later 2.3 ghz X86 processor
  • Ram : 2Go
  • Hard Drive 500 mo Free
  • 15 inch screen XVGA
  • Preferably no Bluetooth module

Download the brochure

Windows^TM is a trademark of Microsoft corporation
